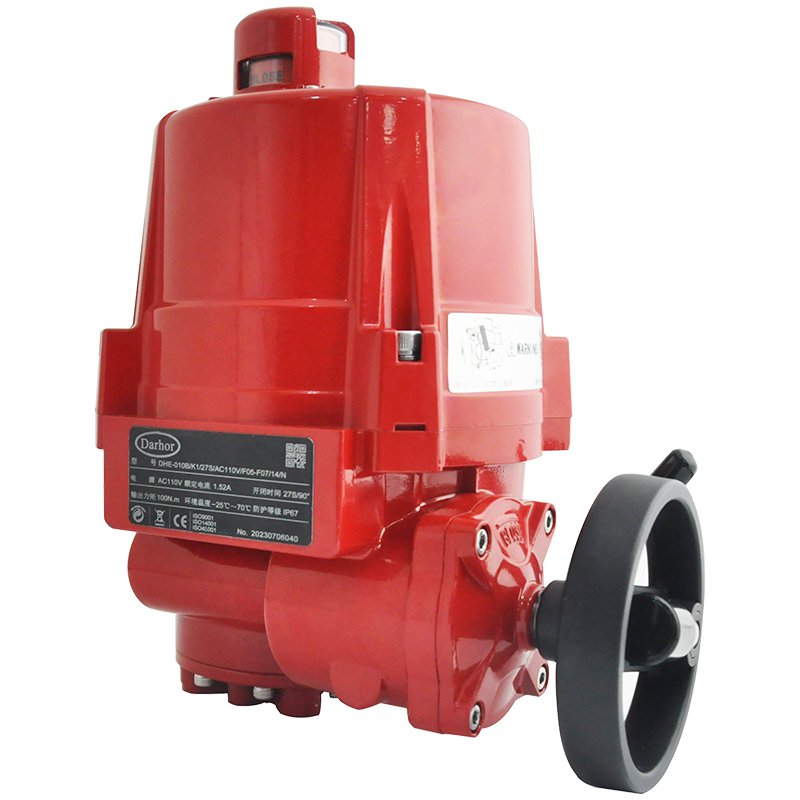

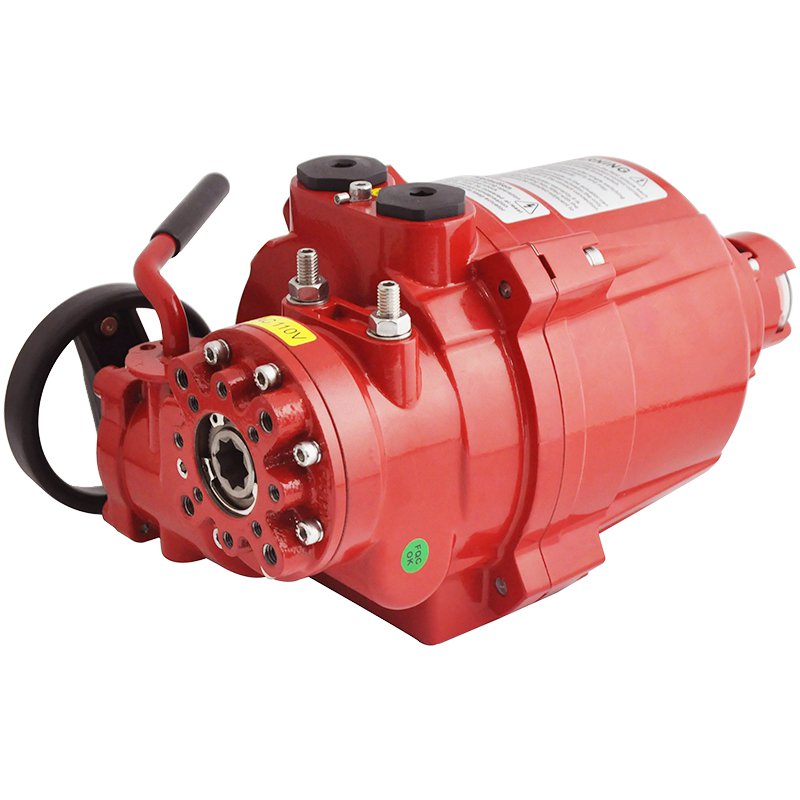

DHLQ-EX-B Explosion Proof Electric Actuator

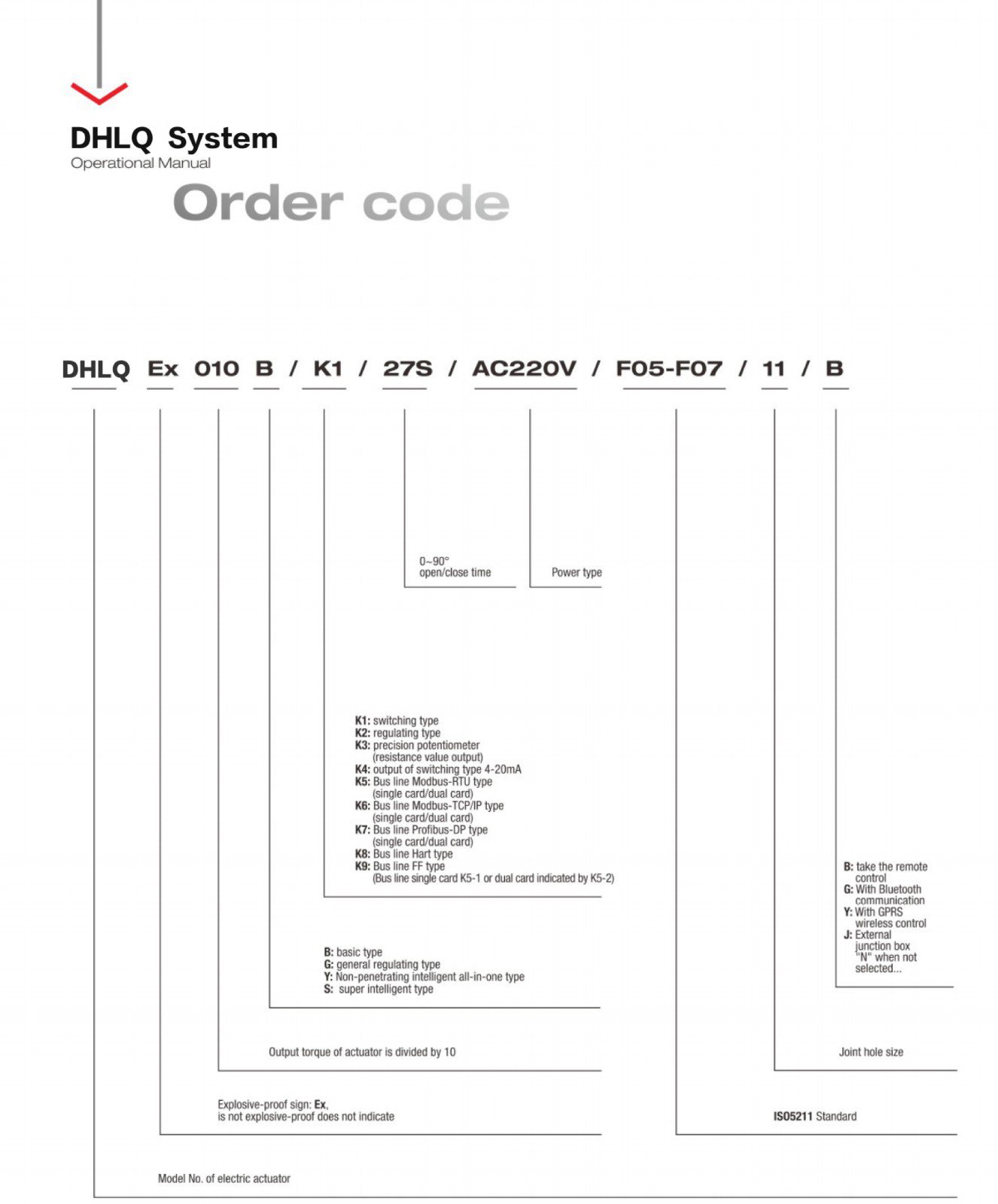

Model

  • Shell:Protection class IP67 Nema 4 and 6 optical: IP68
  • Ambient temperature:-25°C to +70℃
  • Ambient humidity:< 90% RH

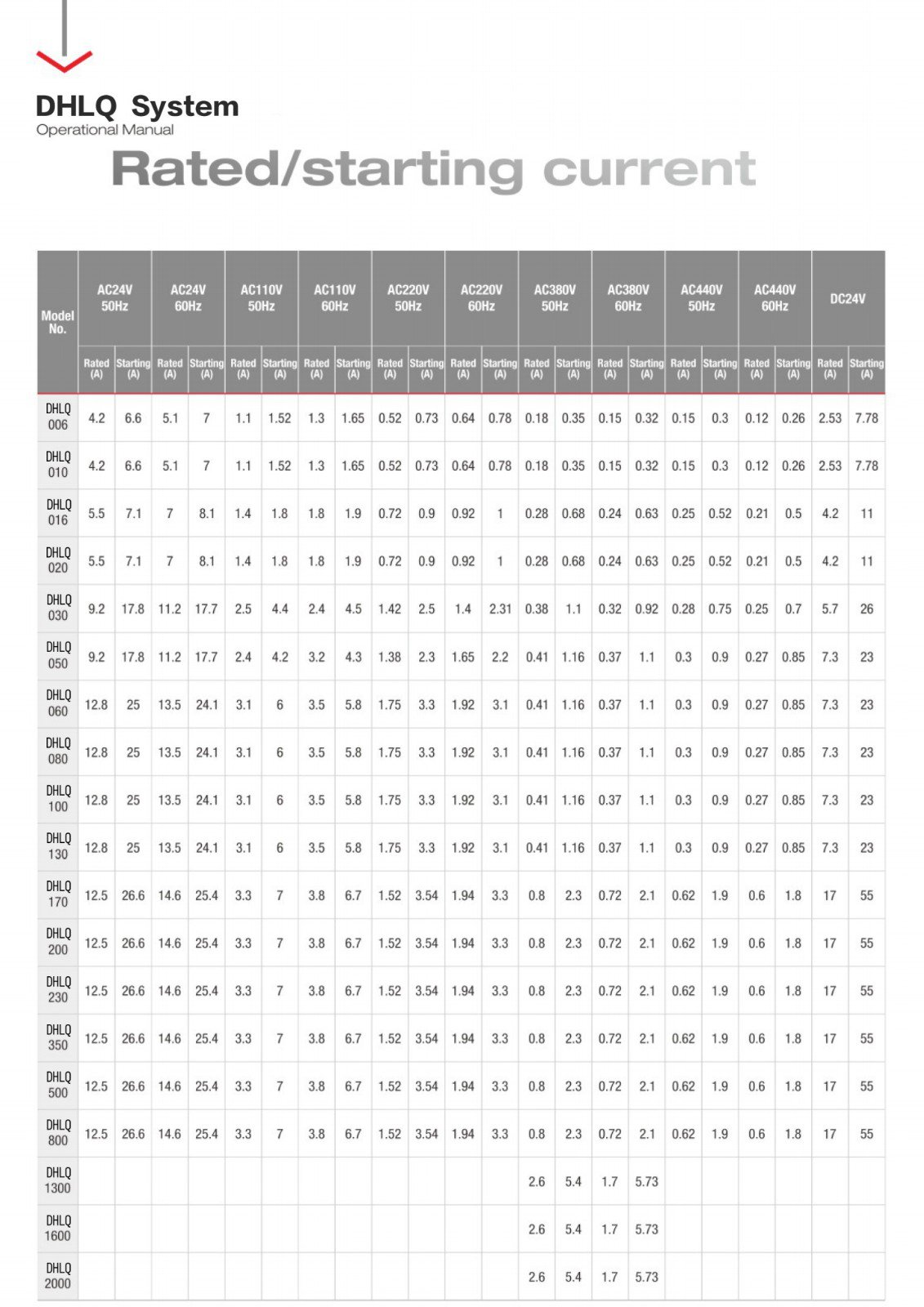

  • Power supply:Single phase: 24V, 110V, 220N, 230V, 240V 50/60Hz;Three phase: 220 380V, 415V, 440V;50/60Hz;DC:DC24V
  • Torque switch:ON/OFF, SPDT 250VAC 10A (except DHLQ006,DHLQ-010)
  • Limit switch:ON/OFF, SPDT 250VAC 10A
  • Motor overheat protection:Built-in thermal protector 120℃±5℃
  • Stroke:90°±5°(0°~-270° optical)

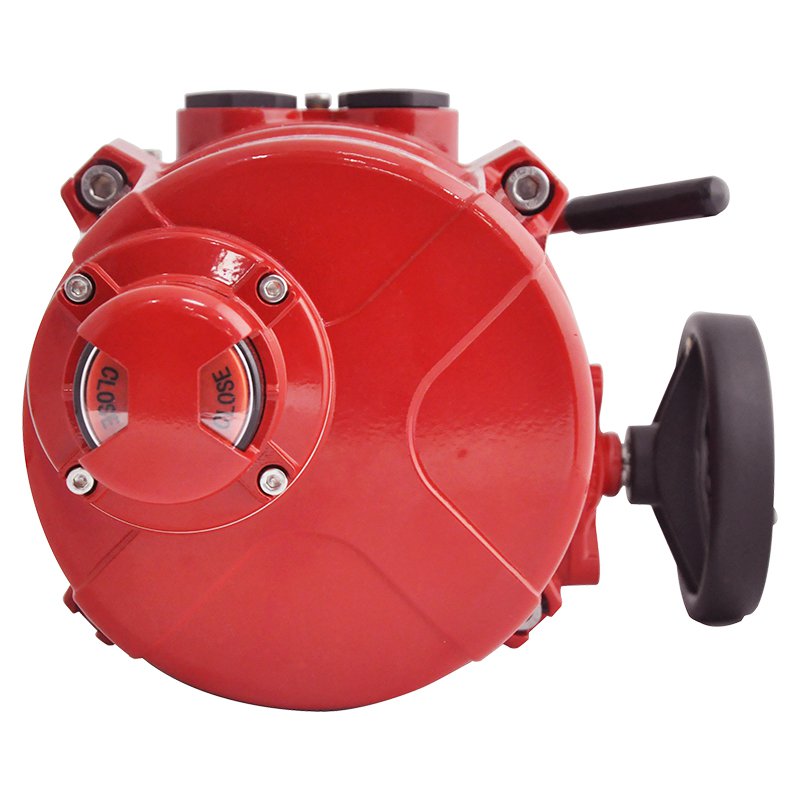

  • Indicator:360° visual indicaton (flameproof type: connecton locaton indication)
  • Self-lock device:Worm-and-wheel gear provided
  • Dryer:Auminum alloy moistureproof resistor (anti-condensation)
  • Terminal hole:Standard:2-NPT3/4";customized for: M20-M25, PG13.5, PG16, PT3/4", PF3/4"

Description
