DH2000SW wall mounted ultrasonic flowmeter

Model

Power consumption: 1.5W
Power supply: DC8-36V or AC85-264V
Accuracy: 1%
Output: 1 channel 4-20mA current output, 1 channel OCT pulse output, 1 channel relay output

Description

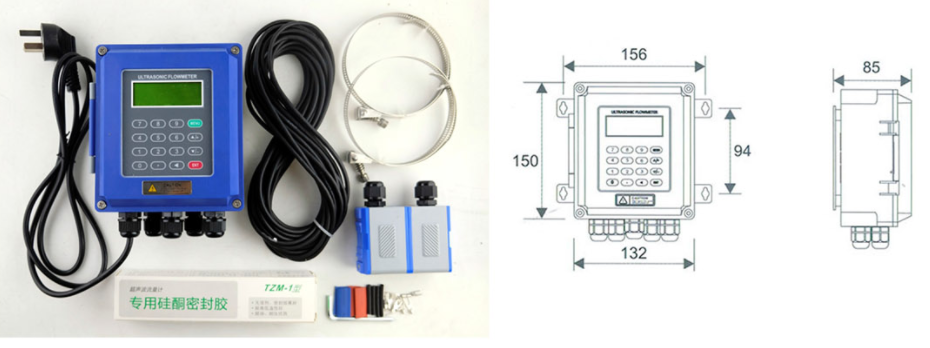

DH2000SW wall mounted ultrasonic flowmeter

The DH-2000SW ultrasonic flowmeter is applied to the long-term online measurement of various liquids. The main unit and the sensor are separately installled. The main uit can be installed indoors, the instrument cabinet, the instrument panel, the sensor is installed on the measuring pipe, and the ultrasonic wave flow meter special cable for the host and the sensor is used. Connected to achieve flow measurement, coupled with a temperature sensor for thermal measurement. Widely used in tap water, heating, water conservancy, metallurgy, chemical, energy and other industries. It can be used for production monitoring, water balance debugging, heat network balance debugging, energy saving monitoring, and is an important flow measuring instrument in the production process.

Basic parameters

Power consumption: 1.5W

Power supply: DC8-36V or AC85-264V

Accuracy: 1%

Output: 1 channel 4-20mA current output, 1 channel OCT pulse output, 1 channel relay output

Technical parameters
